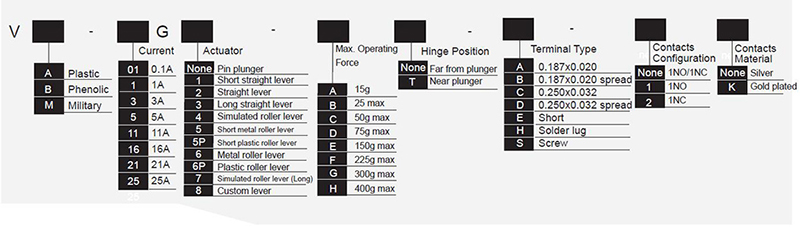

VM/VA/VB Miniature Basic Switches

Features: *Industry standard design with up to 25 A ratings *Choose from a variety of levers, terminals *Variety of operating forces (15g to 400g). *Long service life of 10,000,000 operations *Military standard version available (VM series) *Actuating brackets availble (AC series) *RoHS Compliant

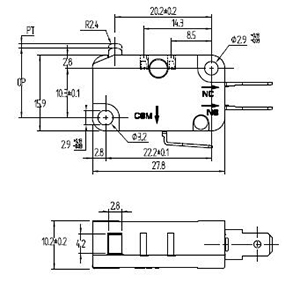

Installation dimensions:

Specifications: Operating Speed: 0.1mm to 1m/s Operating Frequency: Mechanical: 600ops/min Electrical: 60ops/min Insulation Resistance: 100MΩ min.(at 500VDC) Contact Resistance: 30mΩ max(initial values) Rated Voltage/Current 0.1A, 3A, 5A, 11A, 16A 1/2HP 125/250VAC 21,25A 1HP/125VAC 2HP/250VAC Dielectric Strength: 1000VAC,50/60Hz for 1 min between terminals of the same polarity 2000VAC,50/60Hz for 1 min between current-carrying metal parts and ground,and between each teminal and non-current-carrying metal parts Service Life: Mechanically 1×107 (operations) Electrically  1×105 (operations) Operating Temperature: standard -40~85℃ high temperature -40~150℃ Degree of Protection: IEC IP00

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:VM View Details

TYPE:VA View Details

TYPE:VB View Details
